The nine dimensional reference models are specified as 304 stainless steel.
Integrated manufacturing + export coordination
Catalog 02 / drawing-based coil assemblies / 2026
Custom Coils

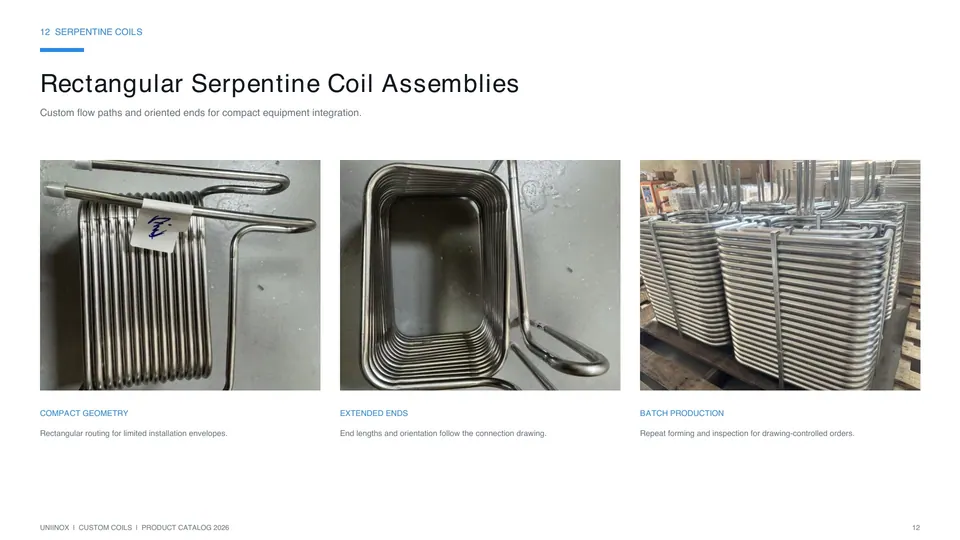

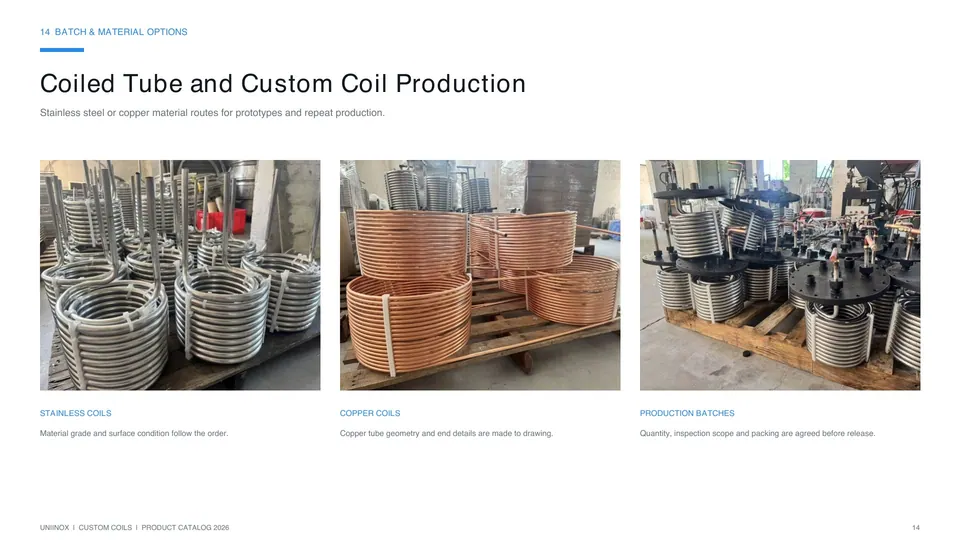

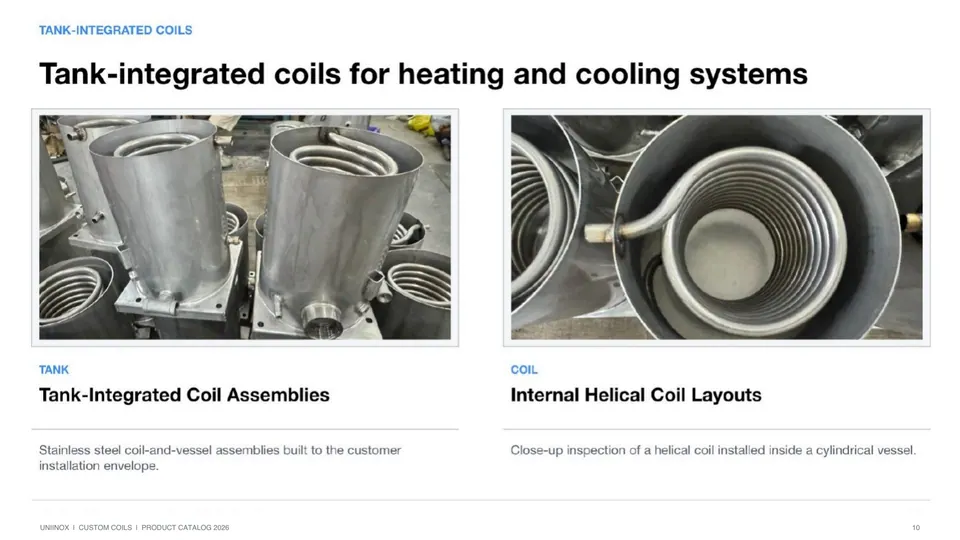

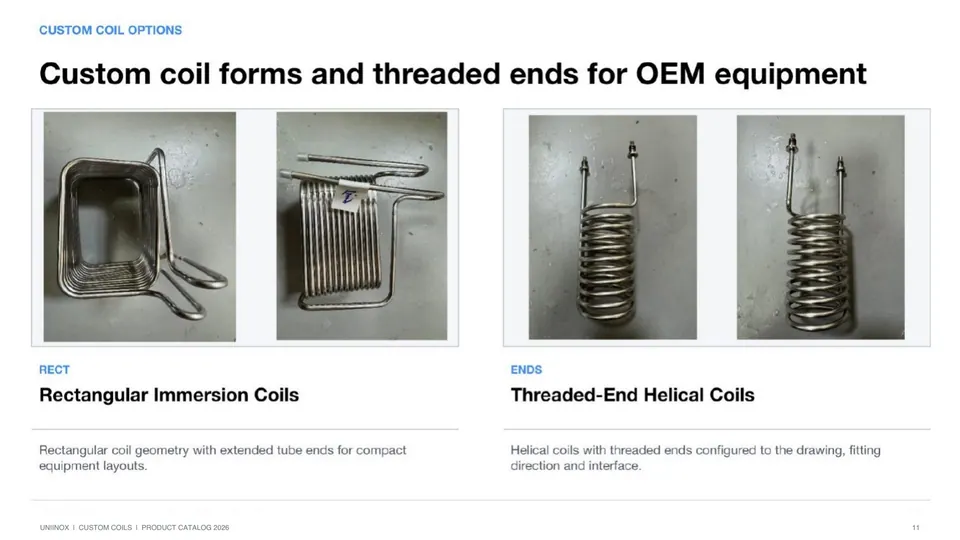

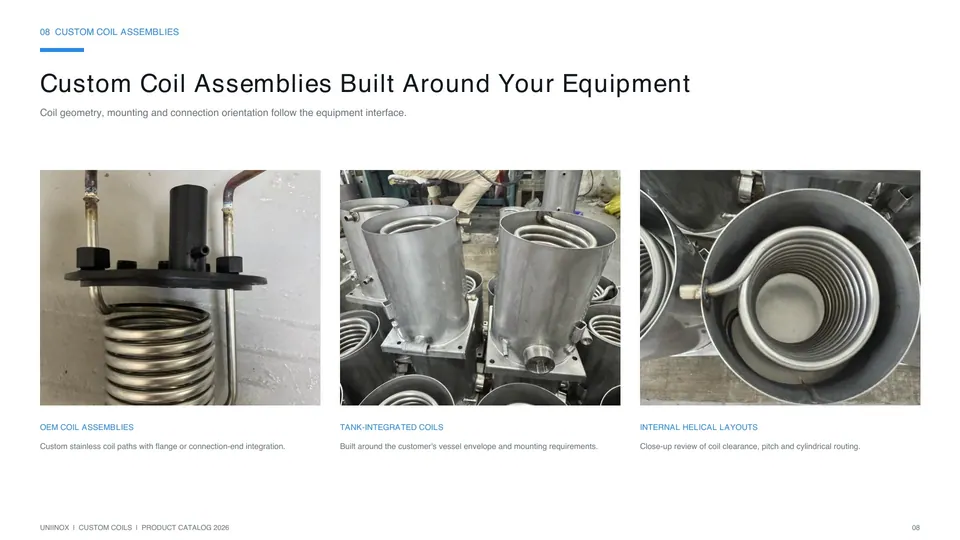

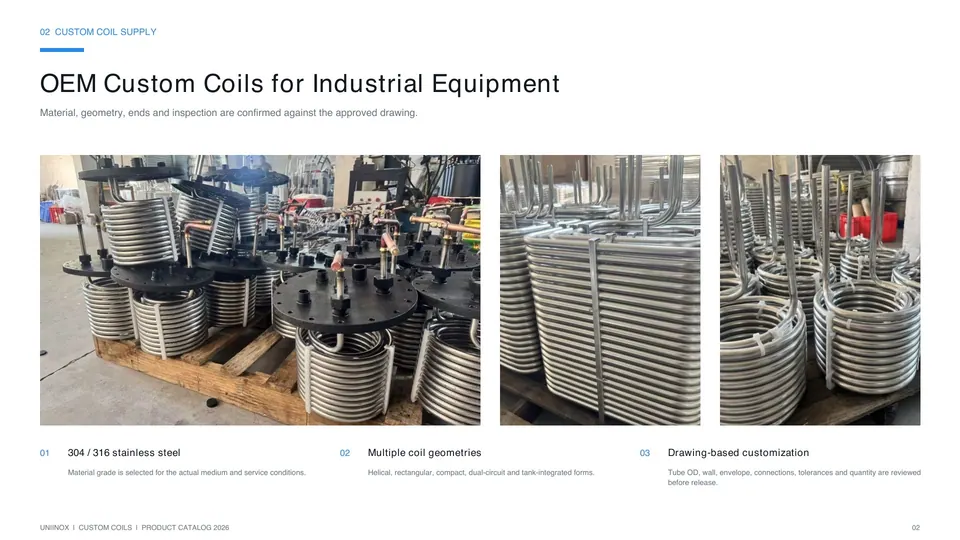

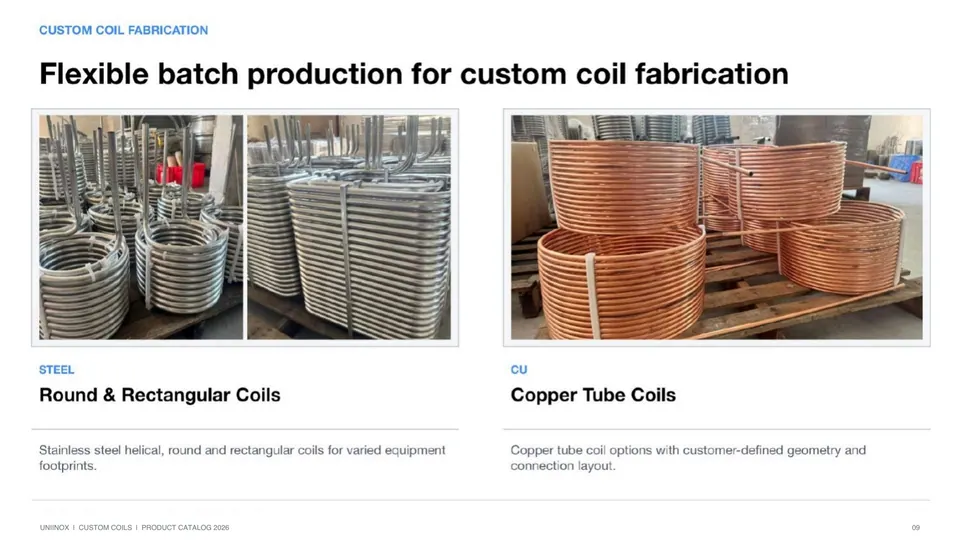

Stainless steel helical coils, immersion coils, formed tube assemblies and nine reference configurations are presented with drawing-based fabrication options.
Verified from the supplied catalog

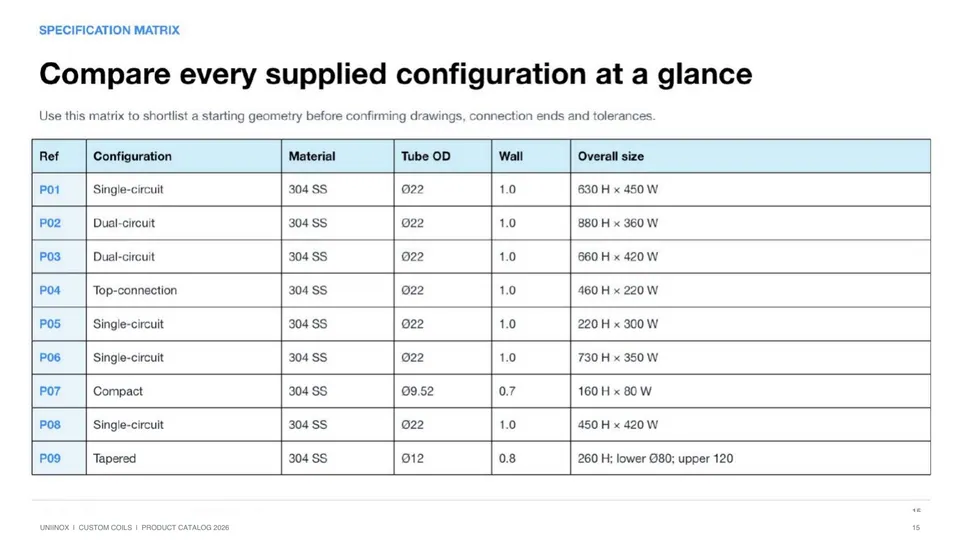

304 stainless reference matrix
All dimensions are in millimetres. These are reference geometries; the approved drawing controls production.
| Ref | Configuration | Material | Tube OD × wall | Overall size |
|---|---|---|---|---|

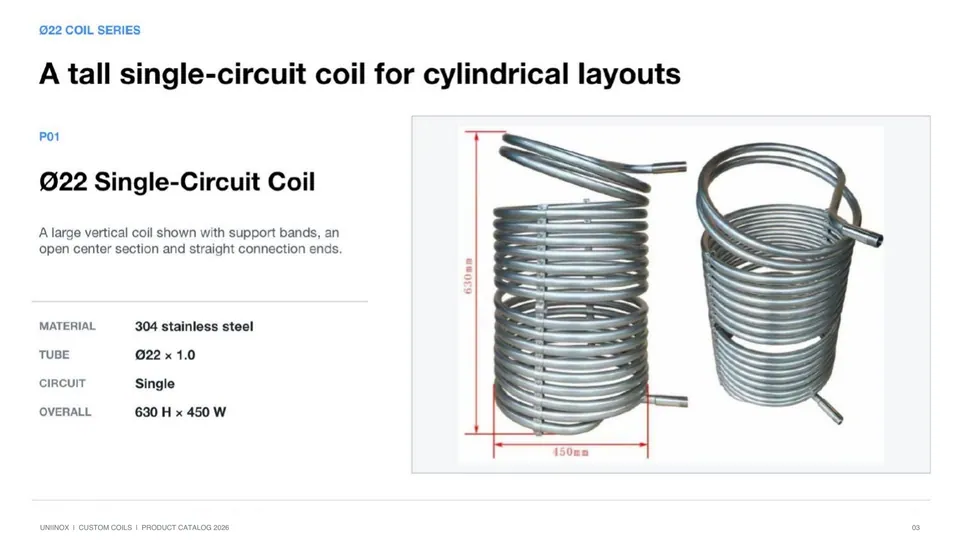

| P01 | Single-circuit | 304 SS | Ø22 × 1.0 | 630 H × 450 W |

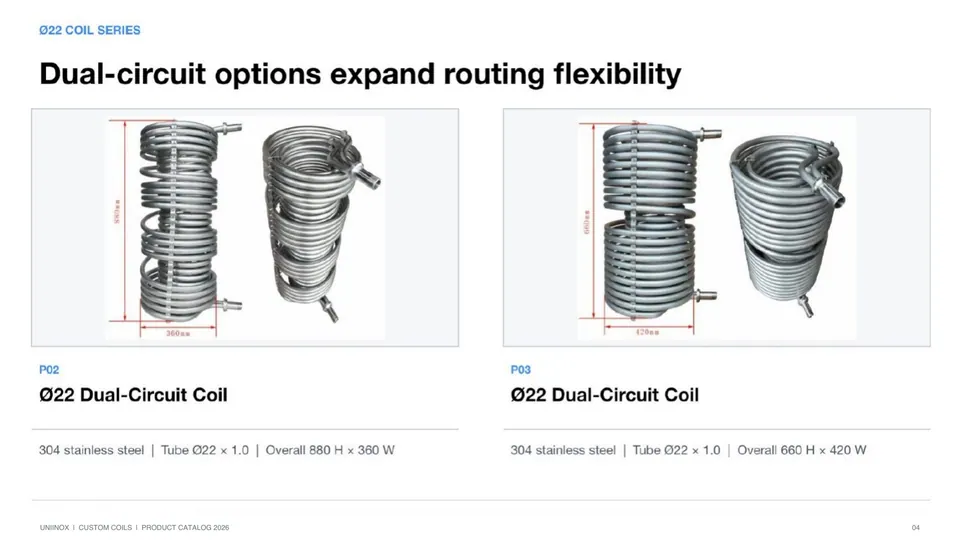

| P02 | Dual-circuit | 304 SS | Ø22 × 1.0 | 880 H × 360 W |
| P03 | Dual-circuit | 304 SS | Ø22 × 1.0 | 660 H × 420 W |

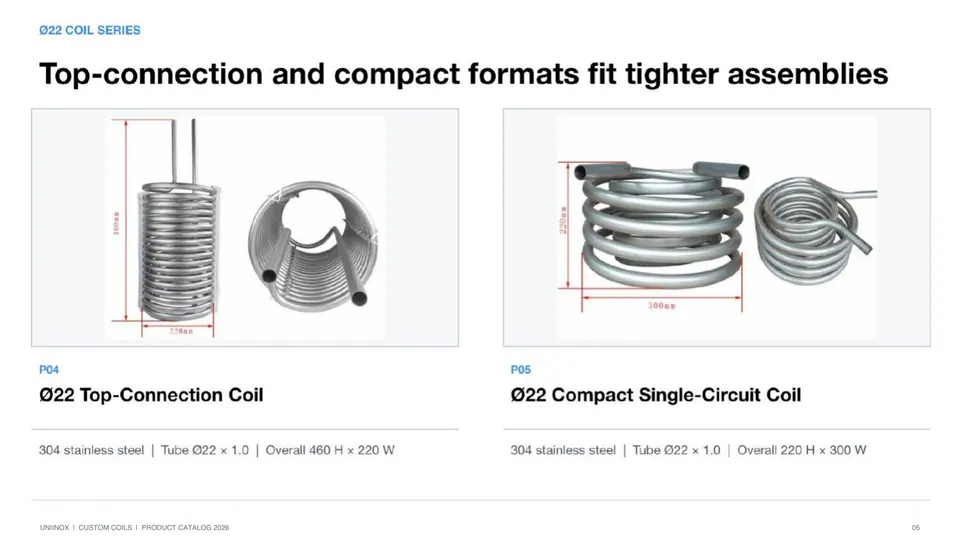

| P04 | Top-connection | 304 SS | Ø22 × 1.0 | 460 H × 220 W |
| P05 | Single-circuit | 304 SS | Ø22 × 1.0 | 220 H × 300 W |

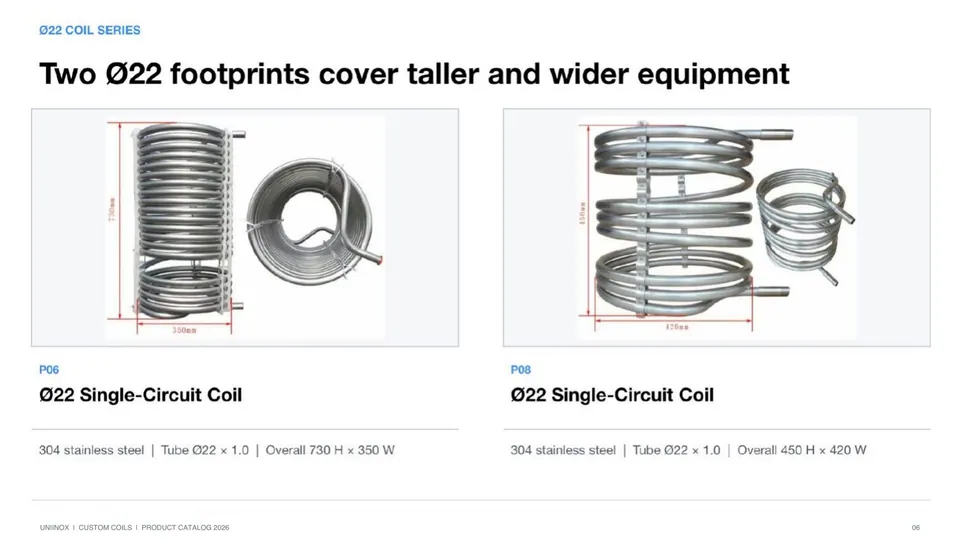

| P06 | Single-circuit | 304 SS | Ø22 × 1.0 | 730 H × 350 W |

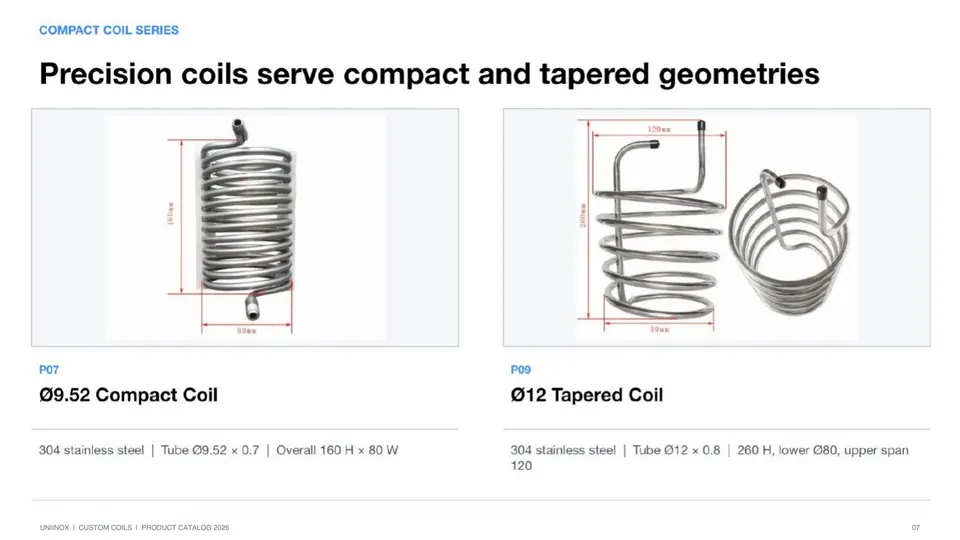

| P07 | Compact | 304 SS | Ø9.52 × 0.7 | 160 H × 80 W |
| P08 | Single-circuit | 304 SS | Ø22 × 1.0 | 450 H × 420 W |
| P09 | Tapered | 304 SS | Ø12 × 0.8 | 260 H; lower Ø80; upper 120 |
Custom geometry

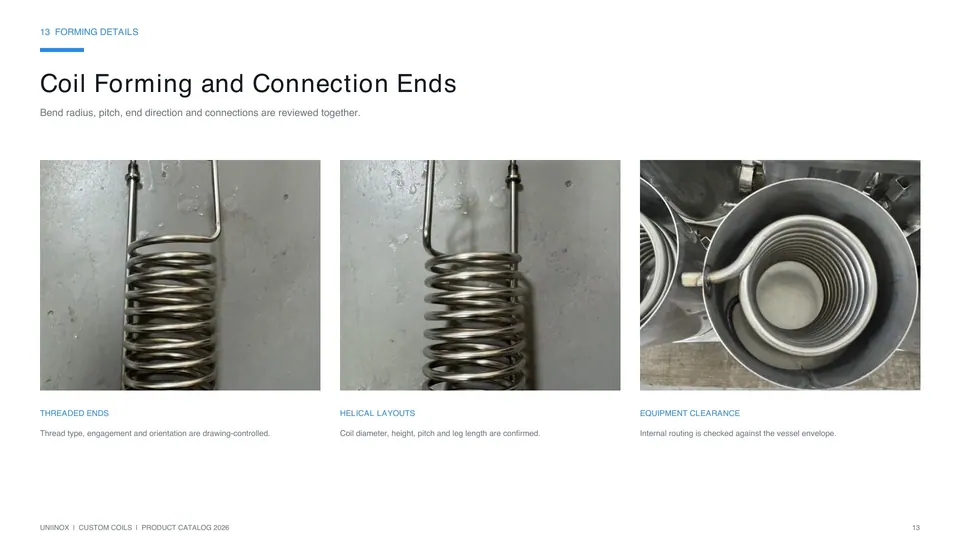

Coil diameter, height, tube route, connections and mounting details follow the approved drawing.
Quotation basis

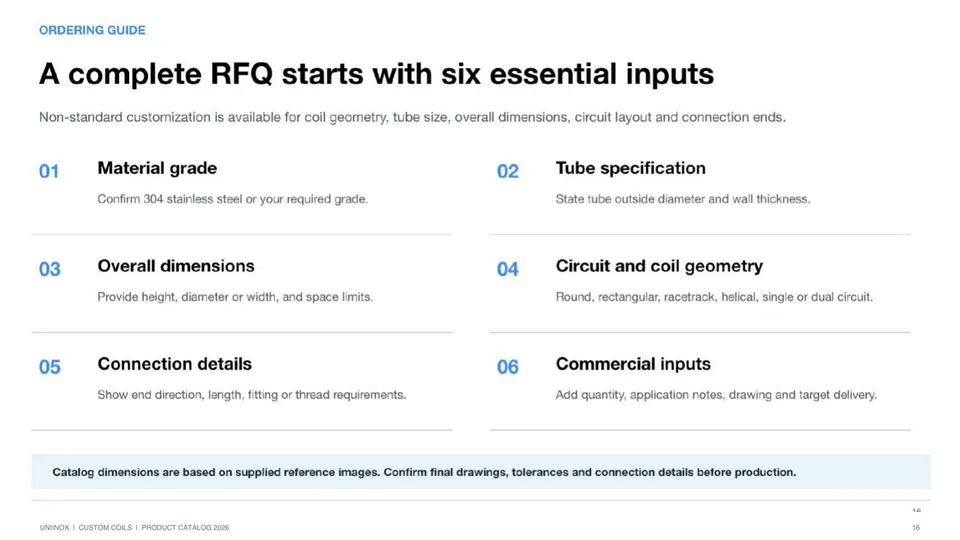

Provide the working medium, duty, conditions, interfaces, material, quantity and required testing.
Technical note: The listed geometries are references rather than universal designs. Material, working medium, pressure, temperature, connections, testing and documentation are confirmed for the approved drawing and order.

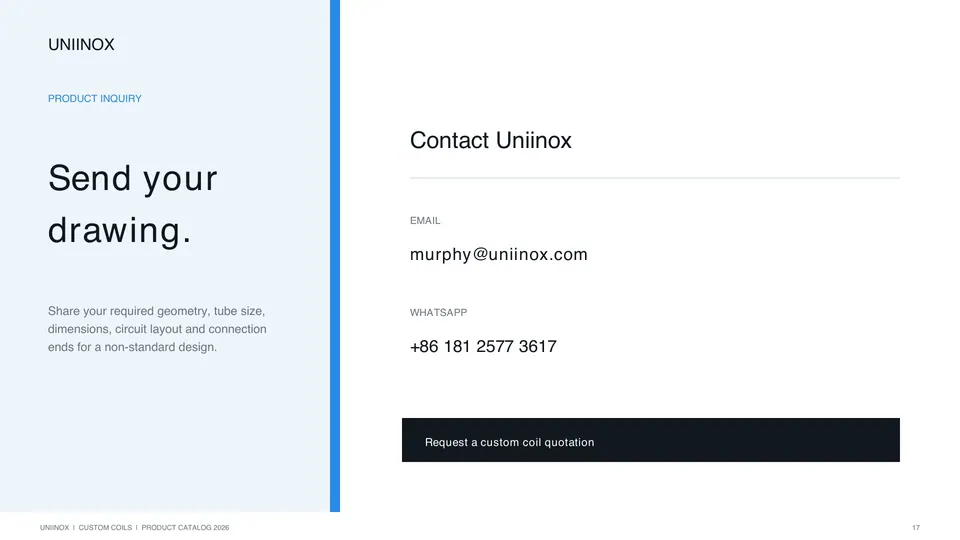

Quotation & contact
Ready for a drawing-based quotation?
Send the product family, drawing, material, operating conditions and quantity. Murphy will coordinate the technical review with the manufacturing team.
